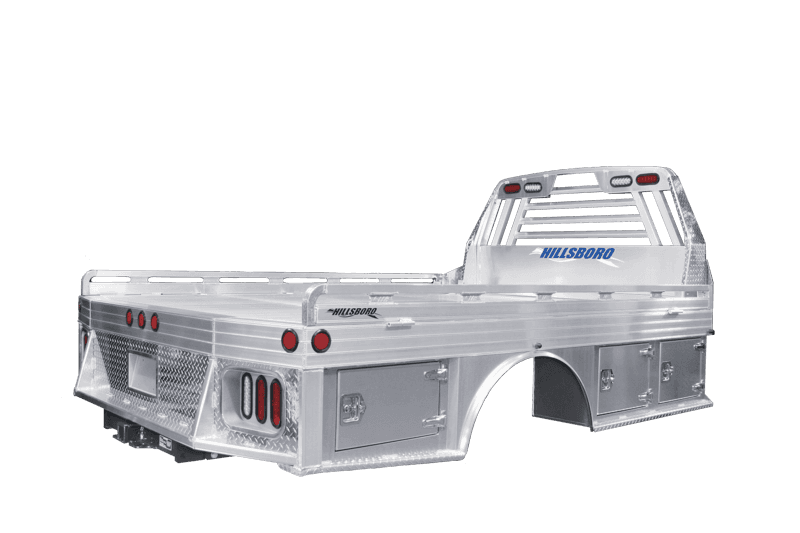

4000 Series Truck Beds

The latest in Hillsboro's series of aluminum truck beds adds fold-down sides, stainless steel flip-up tie-downs and more to our popular 3000-series model. The full-aluminum build of this bed provides more durability and fuel efficiency with less weight. Plus, the truck bed is B&W-compatible, so just add on a Hillsboro kit for easy conversion.

Loading images...

Please note that some pictures may feature additional add-ons. Please contact us for more information.

Key Features & Specifications

Aluminum extruded floor - high-strength aluminum extruded floor built to last
Heavy-duty 6"-tall extruded rubrail
Adjustable-height headache rack with square tube louvers to match cab height
4" x 2" tube steel long sills, adjustable to 34", 38", or 42" frame widths
Treadbrite tailboard for a premium finish
LED lights: six stop, turn & tail lights, four backup lights, and LED clearance and side-marker lights
Sealed wiring harness with plug-in connections to prevent wire damage
Recessed aluminum castings to push loads across the bed with no interference from tie-downs
Tapered rear with step for better clearance for towing and easier access
Tapered front on 96" wide dual-wheel beds for a more aerodynamic and attractive front
25K receiver hitch with 2 ½" tube for safe heavy load towing
30K gooseneck ball plate with flush mount cover and 2 5/16" 30k ball for easy trailer towing
3" aluminum I-beam extrusion crossmembers for increased strength over formed crossmembers
Storage compartments for supersized usable storage space
Toolboxes with EPDM closed-cell foam seal and 0.125-thickness aluminum build for weather resistance
6" fold-down sides with slam latch to choose between having your sides up or down
Recessed stainless steel flip-up tie-downs to secure cargo without added bulk

At Diamond West Sales, we understand the importance of finding the right truck bed for your needs. Request a quote today to learn more about the Hillsboro 4000 Series and how it can meet your specific requirements. Our team is here to assist you with any questions you may have.
