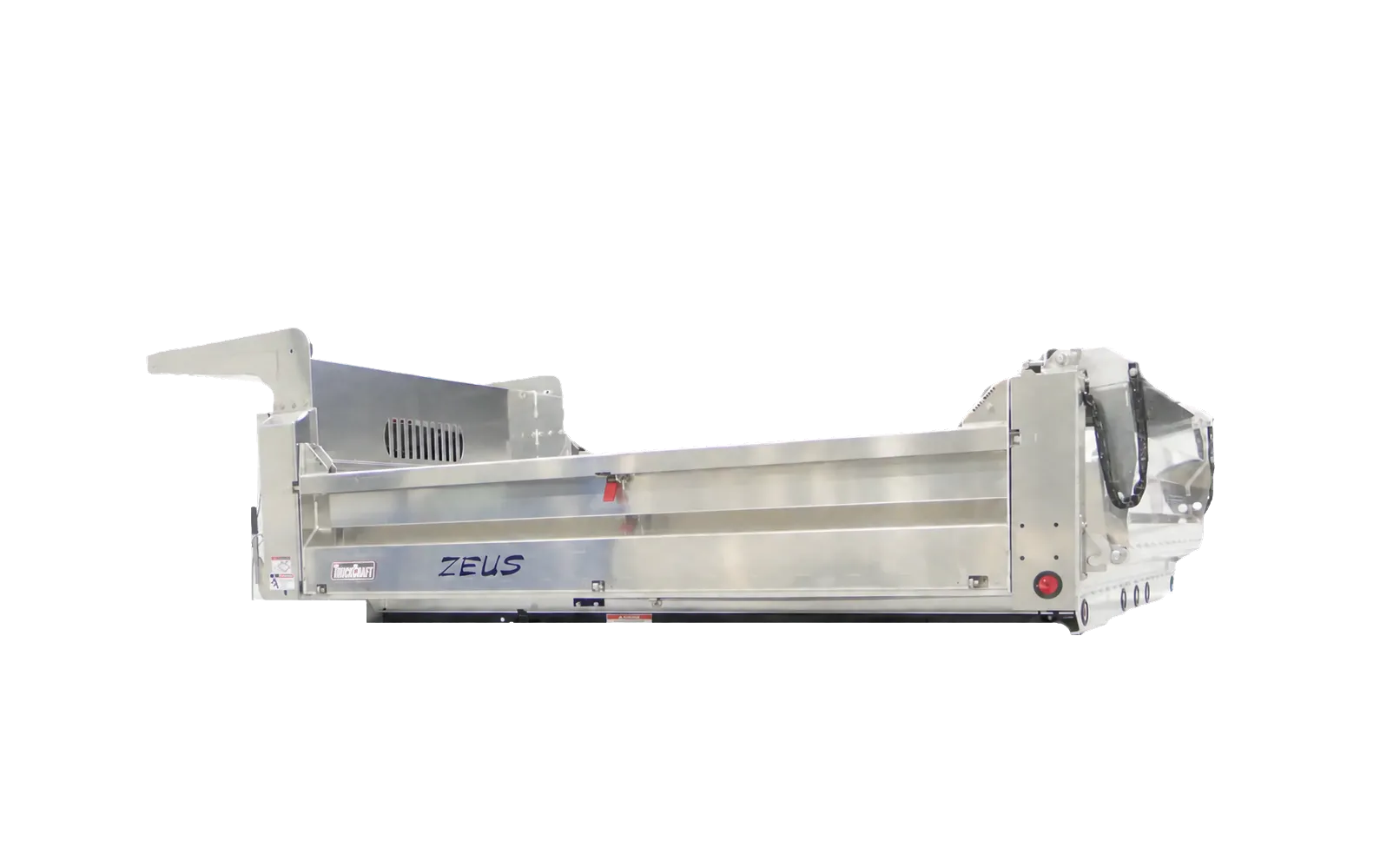

Truck Craft TC-430/435 Aluminum Dump Body

The Truck Craft ZEUS line saves roughly 500 lb versus comparable steel dumps while keeping strong hoist ratings—so you can move more payload with less fuel. The TC-430/TC-435is the 11' all-aluminum one-ton dump for heavier chassis: 96" wide by 11' long, about 4 cubic yards to the top of the sides, and a 16,600 lb hoist rating. It ships fully assembled with the subframe painted and stainless steel hardware, and uses 6061-T6 aluminum with cross members on 5" centers for a durable, low-maintenance finish that stands up to moisture and road salt better than steel.

Loading images...

Photos may show optional equipment. Contact Diamond West Sales for exact build and chassis fit.

TC-430 Key Features & Specifications

Chassis: 14,000 to 19,500 lb GVWR, 84" cab-to-axle
Bed size: 96" wide × 11' long
Side height: 16½" — permanent or 180° drop sides
Tailgate height: 22½" (180° drop)
Volume: 4 cubic yards to top of sides
Hoist rating: 16,600 lb
Floor height: 13⅜" above truck frame
Approx. weight: 1,850 lb assembled (with hoist, ½ cab guard & drop sides)
Max dump angle: 50°
Floor: 3/16" 6061-T6 heat-treated aluminum extrusions, cross members every 5"
Monarch electric/hydraulic power unit — double acting
LED lighting with factory-installed wiring harness
Cab guard: quarter standard; half and three-quarter optional (bolt-on)
Two-year limited warranty

Popular options (factory)

½ or ¾ cab guards
Rigid or drop sides
Price deduction available when ordered without hydraulic pump, hose, or power cables (where applicable)
One, two, or three coal chutes in tailgate
Manual roll-up tarp kit

Diamond West Sales supplies and installs the Truck Craft TC-430 for qualified one-ton and medium-duty chassis. Request a quote for pricing, lead time, and the right configuration for your truck.
